51.2V LiFePO₄ Server Rack Batteries: 100Ah Capacity, Energy Output and Runtime

A 51.2V 100Ah rack battery has 5.12kWh of nominal stored energy, but 5.12kWh should not be treated as guaranteed backup energy at the load.

For 51.2V LiFePO₄ Server Rack Batteries, actual runtime is determined by several linked parameters: usable depth of discharge, load profile, discharge-current limit, conversion efficiency, temperature, cable losses, BMS protection thresholds, and battery aging.

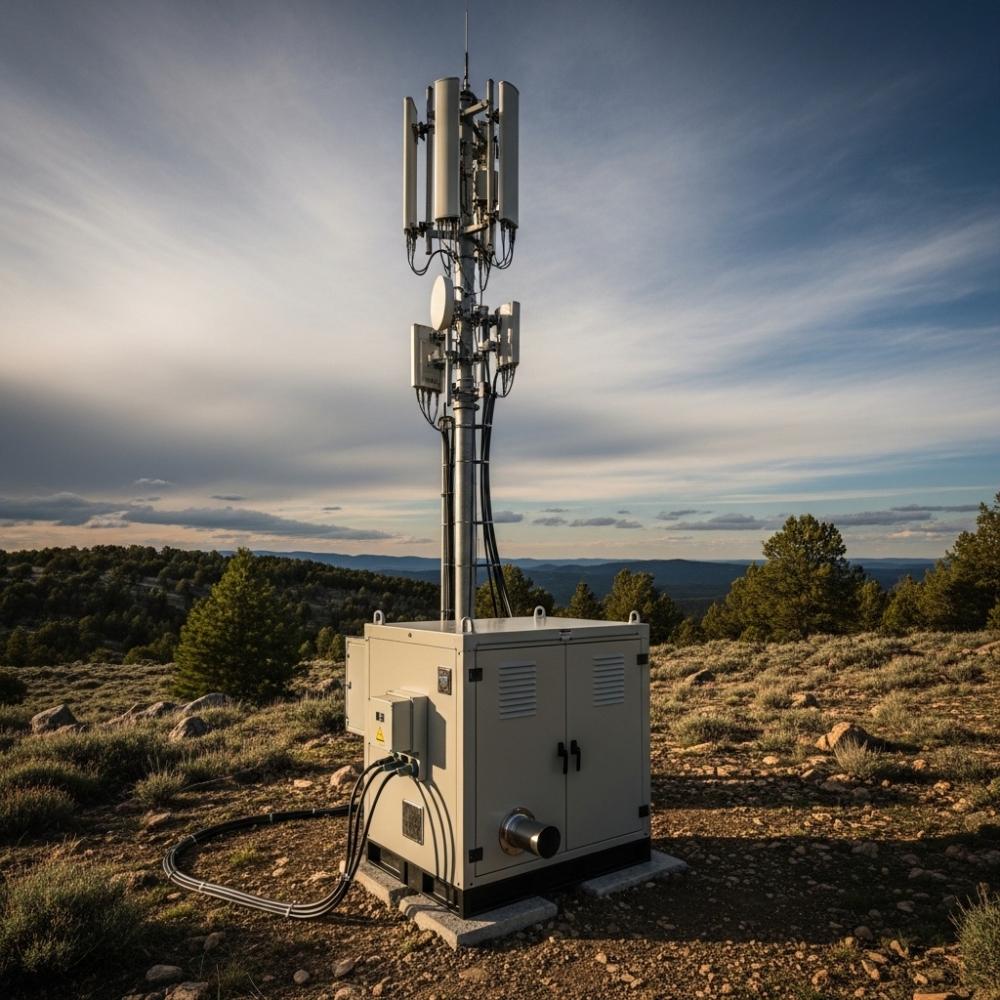

This distinction is important in telecom, UPS, server-room, edge data-center, and industrial backup systems where both energy capacity and power capability must be sized correctly.

What Does 51.2V 100Ah Mean?

Three ratings should be separated when evaluating 51.2V LiFePO₄ Server Rack Batteries:

•   51.2V — Nominal DC battery voltage

•   100Ah — Charge capacity

•   5.12kWh — Nominal stored energy

The energy calculation is:

51.2V × 100Ah = 5,120Wh = 5.12kWh

Amp-hours alone cannot predict runtime. A 100Ah battery supporting a 500W telecom load behaves very differently from the same battery supplying a 3kW UPS load.

For engineering comparison, kWh is the more useful capacity metric, while voltage and current determine whether the battery can support the required DC power.

Nominal Energy vs. Usable Energy

The 5.12kWh rating represents nominal energy stored in the battery. The energy actually delivered to equipment is normally lower.

A simplified engineering relationship is:

Usable Energy = Nominal Energy × Usable DoD × Conversion Efficiency

For example, using an illustrative 90% usable DoD and 92% system efficiency:

5.12 × 0.90 × 0.92 ≈ 4.24kWh

The difference can come from:

•   BMS low-voltage cutoff;

•   Inverter or UPS conversion losses;

•   Cable and connector resistance;

•   Temperature-dependent cell behavior;

•   Cell balancing limits;

•   Battery aging;

•   Auxiliary consumption from control electronics.

For this reason, 51.2V LiFePO₄ Server Rack Batteries should be sized from required usable energy rather than nominal kWh alone.

How Long Can a 51.2V 100Ah Battery Run a Load?

Once usable energy is known, approximate runtime becomes:

Runtime = Usable Energy ÷ Average Load

Using 4.24kWh as an illustrative usable-energy value:

Average Load	Approx. Runtime*	Typical Interpretation
500W	8.5 h	Light telecom / control load
1kW	4.2 h	Small backup system
1.5kW	2.8 h	Medium continuous load
2kW	2.1 h	Higher-density equipment
3kW	1.4 h	High-power short backup

Illustrative only. Actual runtime depends on battery condition, temperature, DoD, conversion efficiency, BMS settings, and real load behavior.

Average power is especially important. Telecom equipment and servers rarely operate at one fixed wattage, so runtime calculations should preferably use a measured or realistically estimated load profile, not only the equipment nameplate maximum.

Capacity and Discharge Current Are Different Design Limits

A common mistake is to select 51.2V LiFePO₄ Server Rack Batteries only by kWh.

Capacity determines how long energy can be supplied. Continuous discharge current determines how much power can be supplied at one time.

The VoltaLink 51.2V 100Ah rack battery platform specifies:

•   Rated voltage: 51.2V

•   Voltage range: 40–57.6V

•   Rated capacity: 100Ah

•   Continuous charge current: 50A

•   Continuous discharge current: 100A

At nominal voltage, a simplified DC power estimate is:

51.2V × 100A = 5.12kW

However, this does not mean every installation should be designed continuously at 5.12kW. Real system capability also depends on:

•   BMS current limits;

•   Busbar and terminal rating;

•   Conductor cross-section;

•   Connector temperature rise;

•   Cabinet thermal conditions;

•   UPS or inverter input limits.

This is why VoltaLink considers cell configuration, BMS, electrical interconnection, and PACK structure together during battery-system design.

Why Voltage Range Matters

A 51.2V battery does not remain at exactly 51.2V during operation.

The VoltaLink platform specifies an operating range of approximately 40–57.6V. Connected equipment must therefore tolerate the battery’s complete operating voltage window.

This affects:

•   UPS DC-input compatibility;

•   DC/DC converter design;

•   Low-voltage shutdown thresholds;

•   Cable current at lower battery voltage;

•   System protection settings.

For constant-power loads, current rises as battery voltage falls. A load requiring the same power near the lower end of the voltage range may therefore draw more current from the battery.

That relationship should be checked against the continuous-current limit.

Scaling 51.2V LiFePO₄ Server Rack Batteries in Parallel

When one 100Ah module cannot provide the required runtime, additional modules can increase total energy.

Modules	Total Capacity	Nominal Energy
1	100Ah	5.12kWh
2	200Ah	10.24kWh
3	300Ah	15.36kWh
4	400Ah	20.48kWh

Parallel expansion, however, requires more than matching nominal voltage.

Engineers should verify:

•   Battery model and firmware compatibility;

•   SOC difference before paralleling;

•   Equal-length power cables where required;

•   Current-sharing behavior;

•   Busbar and breaker capacity;

•   Maximum supported parallel quantity;

•   Communication addressing;

•   Charging-current limits;

•   Rack ventilation and service clearance.

Poor current sharing can cause one module to carry more load than others, creating uneven cycling and earlier BMS protection.

BMS and Communication Affect System Performance

The BMS is a critical part of 51.2V LiFePO₄ Server Rack Batteries because it defines safe operating boundaries.

Typical monitoring functions include:

•   Individual cell voltage;

•   Pack voltage;

•   Charge/discharge current;

•   Battery temperature;

•   SOC estimation;

•   Balancing status;

•   Overcurrent and short-circuit conditions.

VoltaLink rack battery designs can also support communication interfaces such as RS485 and CAN, depending on configuration, allowing battery information to be exchanged with compatible UPS, inverter, monitoring, or energy-management equipment.

Communication compatibility should be verified at the protocol level—not simply by confirming that both devices have a CAN or RS485 port.

Engineering the Battery Around the Actual Load

The most useful starting point for 51.2V LiFePO₄ Server Rack Batteries is therefore not “How many Ah do I need?” but:

How much usable energy must reach the load, for how long, and at what maximum power?

A 51.2V 100Ah module provides 5.12kWh nominal energy, but a reliable backup design must also account for DoD, efficiency, load variation, current limits, thermal conditions, BMS settings, and parallel-system behavior.

VoltaLink develops rack-mounted LiFePO₄ battery systems with battery PACK, BMS, communication, and system-integration requirements considered together. For a specific telecom, UPS, or industrial backup project, providing the load power, required runtime, DC operating voltage, and communication requirements allows VoltaLink to evaluate a suitable 51.2V LiFePO₄ Server Rack Batteries configuration rather than sizing the system from capacity alone.

FAQs

Q1. What is the energy storage capacity of the VoltaLink 51.2V 100Ah server rack battery?

A 51.2V 100Ah battery has a nominal energy capacity of 5.12 kWh. Depth of Discharge, BMS limits, battery and system temperate, and overall system efficiency will define the battery’s actual usable energy.

Q2. How long will a VoltaLink 51.2V 100Ah rack battery provide backup power?

The backup power remaining depends on the load. As an example, a continuous load of 1kW will theoretically deplete the battery in 5.12 hours, while the actual practical runtime will be around 4.2 hours due to temperature, DoD, and conversion losses.

Q3. What is the continuous discharge current of VoltaLink 51.2V LiFePO₄ Server Rack Batteries?

The VoltaLink 51.2V 100Ah rack battery is rated for a 100A continuous discharge current. Even with this rating, the system should be designed to within all the BMS and other current controlling components.

Q4. Can I connect more than one VoltaLink server rack battery in parallel?

Yes. VoltaLink allows flexible system designs for rack battery capacity changes. For parallel expansion, caution should be used with the correct rated protection systems, cabling, and busbars. Communication should be designed as well.

Q5. Will VoltaLink 51.2V LiFePO₄ Server Rack Batteries fit in a standard 19 inch rack?

VoltaLink LiFePO₄ batteries are designed to fit in compact racks including a 19 inch form factor. Ensure clearance between racks for ease of service and battery ventilation.
