51.2V 100Ah LiFePO₄ Battery for Inverter in Solar Energy Storage Systems

A 51.2V 100Ah LiFePO₄ Battery for Inverter is commonly used in residential and small commercial solar energy storage because it sits in a practical middle ground between voltage, energy capacity, current capability, and modular expansion.

The VoltaLink rack battery uses a 51.2V nominal voltage, 100Ah capacity and 5.12kWh rated energy, with a 40–57.6V operating range, 50A continuous charging current and 100A continuous discharge current.

To understand why these values matter, it helps to separate four concepts: voltage, capacity, energy, and power.

Why 51.2V Is Used in a 48V-Class Solar System

Solar storage systems are often described as “48V systems,” but LiFePO₄ batteries in this class commonly use a nominal voltage around 51.2V.

The important point is that nominal voltage is only a reference value. A battery does not stay at exactly 51.2V during charging and discharging.

When set to the VoltaLink 51.2V 100Ah LiFePO₄ Battery for Inverter, the optimum operating range is from 40V to 57.6V.

Therefore, The battery, as well as the inverter, needs to function in the same voltage range across the entire charge and discharge process.

In practical terms:

•   Nominal voltage describes the system class.

•   Maximum voltage is related to the upper charging region.

•   Lower voltage approaches the discharge protection region.

•   BMS limits prevent operation outside safe electrical conditions.

This is why a 51.2V battery can operate in a solar system commonly marketed as a 48V platform.

How 100Ah Becomes 5.12kWh

A battery’s amp-hour rating gives no indication of battery energy storage.

Energy is approximately calculated as:

E = V × C

For a 51.2V 100Ah LiFePO₄ Battery for Inverter:

51.2V × 100Ah = 5,120Wh = 5.12kWh

The 5.12kWh determines the battery’s energy storage potential.

One needs to understand the subtleties of the values, which are as follows:

•   5.12kWh is the stored energy.

•   kWh tells the potential supply time.

•   kW tells the delivery rate of energy.

•   A (Amperes): Measures the instantaneous electrical current flow.

•   Ah (Amp-hours): Represents the total battery charge capacity.

A 5.12kWh battery used with a light load could run for hours, while the same battery with a heavy load on it could discharge in minutes.

Why a 100A Discharge Rating Matters

Current capacity is the amount of power a battery is able to deliver at a specified voltage.

At typical (nominal) conditions:

51.2V × 100A = 5.12 kW DC

VoltaLink specifies 100 A continuous discharge current for this battery.

However, one must not misunderstand and think that this battery delivers 5.12 kW AC through an inverter continuously.

There are many other factors that reduce or even change the output. Among them are:

•   Battery voltage drops during discharge.

•   Inverters have losses during the conversion process.

•   There are also small electrical losses.

•   Motors and compressors result in short surges.

•   The BMS may limit current under abnormal conditions.

This is why the power of the inverter and the battery current must be understood.

3kW and 5kW Inverters Do Not Load the Battery Equally

Consider the same 51.2V 100Ah LiFePO₄ Battery for Inverter connected to two different inverter sizes.

Operating Condition	3kW-Class Load	5kW-Class Load
Battery current demand	Lower	Higher
Energy consumption rate	Slower	Faster
Current margin	Larger	Smaller
Effect of low battery voltage	Moderate	More significant
Need for parallel batteries	Less likely	More likely at sustained high load

A larger inverter does not increase battery capacity. It only increases the possible rate at which stored energy can be converted and consumed.

Therefore, power capability and energy capacity must be treated as separate design dimensions.

Why Solar Panel Capacity Does Not Equal Backup Capacity

Another widespread misunderstanding is that increasing PV module capacity results in greater backup time during nights.

PV and battery systems have different roles:

•   PV array (or modules) transforms energy from the Sun.

•   Battery stores energy.

•   Inverter controls and converts power.

•   Load consumes energy.

A large PV array could charge the battery in a shorter time span, but at nights the duration of the backup will solely depend on the capacity of the battery and the demand of the load.

This is why solar storage design is best understood as:

PV Generation → Battery Charging → Stored Energy → Inverter Conversion → Load Consumption

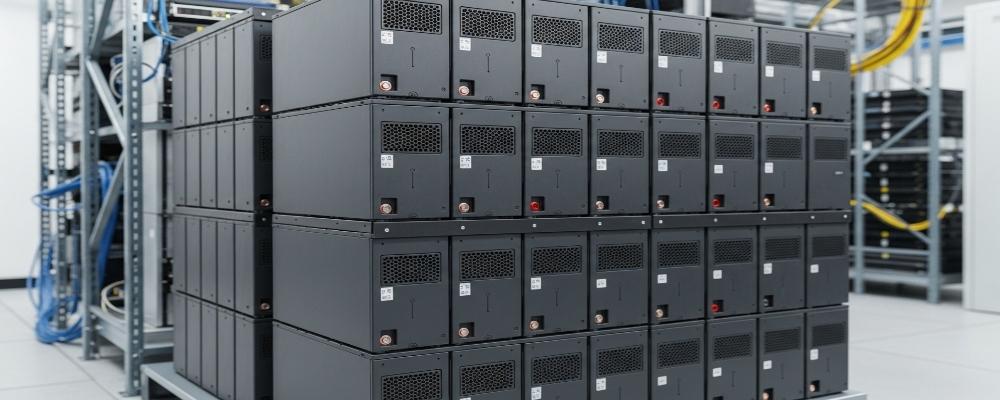

How Parallel Batteries Increase Storage Capacity

One 51.2V 100Ah module provides 5.12kWh nominal energy. VoltaLink’s rack design supports parallel expansion.

When equal battery modules are connected in parallel, the nominal voltage remains approximately the same while total capacity increases.

Modules	Total Capacity	Nominal Energy
1	100Ah	5.12kWh
2	200Ah	10.24kWh
3	300Ah	15.36kWh
4	400Ah	20.48kWh

Parallel architecture is useful because storage can be increased without changing the basic 51.2V system platform.

Why BMS Communication Matters

Modern batteries are not simply electrochemical storage blocks. They also contain a battery management system.

VoltaLink integrates CAN, RS485 and RS232 communication interfaces in this battery platform.

The BMS monitors operating conditions such as:

•   Voltage;

•   Current;

•   Temperature;

•   Charging and discharging status;

•   Protection conditions.

VoltaLink’s BMS manages charging, discharging, voltage, temperature and system safety.

Communication allows battery information to be shared with compatible inverters or monitoring systems. But a physical CAN or RS485 port does not automatically mean every inverter uses the same communication protocol.

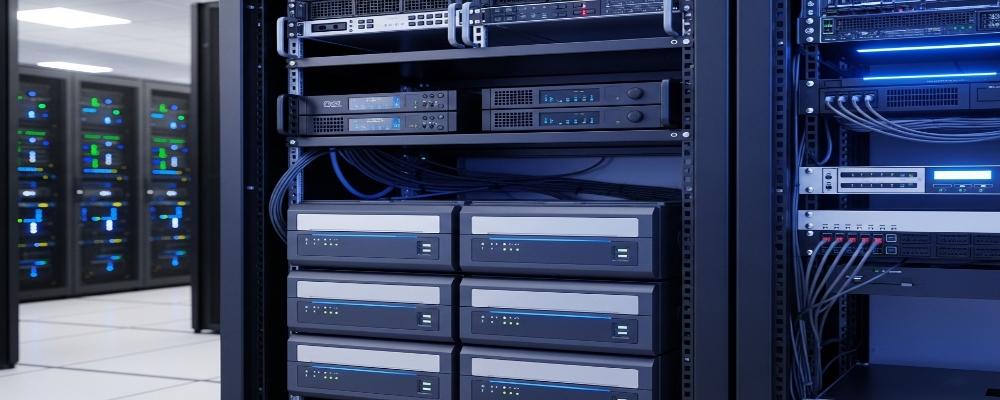

Rack-Mounted Design and Indoor Installation

The VoltaLink 51.2V 100Ah LiFePO₄ Battery for Inverter measures 449 × 454 × 134mm and uses a server-rack format. Its specified protection level is IP20, indicating indoor installation.

Rack mounting is especially useful when several battery modules are combined because it keeps:

•   Modules mechanically organized;

•   DC connections accessible;

•   Communication wiring structured;

•   Expansion easier to manage.

Final Words

A 51.2V 100Ah LiFePO₄ Battery for Inverter should ultimately be understood as one component in a larger energy system.

Its 51.2V voltage establishes the electrical platform, 100Ah capacity determines charge storage, 5.12kWh defines nominal energy, 100A discharge capability influences output power, and CAN/RS485 communication connects the BMS with the wider system.

VoltaLink combines these functions in a modular rack-mounted format designed for solar storage and scalable battery configurations. For users studying solar energy storage architecture, understanding how these parameters interact is more useful than looking at any single battery specification in isolation.

FAQs

Q1. What is the energy capacity of the VoltaLink 51.2V 100Ah LiFePO₄ Battery for Inverter?

The battery has 51.2V and 100Ah, with a nominal voltage of 51.2V and a capacity of 100Ah, the battery delivers a total rated energy storage capacity of 5.12kWh,it gives the battery a storage energy capacity of 5.12kWh. This is stated energy capacity in a nominal way and not the actual energy capacity that an inverter can supply continuously.

Q2. Can a VoltaLink 51.2V 100Ah LiFePO₄ Battery for Inverter work with a 48V solar inverter?

Possibly, but the battery’s 51.2V nominal voltage with most LiFePO₄ storage systems marketed as 48V systems suggests it could be compatible. However, it should be determined if the voltage range of the inverter, along with battery charging, current limits and communication protocols are compatible. The VoltaLink battery has a specified range of 40V to 57.6V.

Q3. What is the continuous discharge current of the VoltaLink battery?

VoltaLink battery continuous discharge is rated at 100A and standard discharge at 50A. The 100A value is required for battery-side discharge current calculations for higher inverter loads.

Q4. Can this 51.2V 100Ah battery be used with a 5kW inverter?

At a nominal condition of 51.2V × 100A, this battery can provide about 5.12kW of DC power. For this reason, while a single module can support a 5kW inverter under normal loads, it is highly recommended to use at least two units in parallel for a 5kW inverter to avoid running the single battery at its maximum continuous current limit and to ensure a safer margin.

Q5. What communication interfaces does the VoltaLink battery support?

The battery offers CAN, RS485 and RS232 for battery monitoring and inverter integration. Just because an interface is physical, doesn’t mean compatibility in the communication protocol is guaranteed, so the protocol for the inverter must still be verified.
