The Off Grid Solar Battery System is a compact energy solution designed to store solar power and deliver stable electricity when grid supply is unavailable. It combines lithium iron phosphate battery technology with an intelligent control system to ensure safe, efficient, and long-term operation. The system supports multiple working modes, allowing seamless switching between solar, battery, and grid power sources. With strong compatibility for modern solar inverters, it improves energy utilization and reduces dependence on traditional electricity. Its durable structure, low maintenance design, and advanced protection features make it suitable for homes, remote locations, and backup power applications.
DC Section：
| Item | Specifications |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100 Ah × 2 |
| Rated Energy | 10240 Wh |
| Dimensions (L×W×H) | 600 × 500 × 660 mm (including inverter and bottom wheels, wheel height approx. 80 mm) |
| Weight | 120 kg ± 1 kg (including inverter section) |
| Enclosure Material | Metal sheet |
| Built-in BMS | Yes |
Inverter Section：
| Item | Specifications |
|---|---|
| Rated Power | 5500 VA / 5500 W |
| Surge Power | 11000 W |
| Waveform | Pure Sine Wave |
| AC Output Voltage | 220–240 VAC |
| Inverter Efficiency (Peak) | 90% |
| Output Voltage | 230 VAC ±5% |
| Selectable Input Voltage Range | 170–280 VAC (UPS) / 90–280 VAC (APL) / 184–253 VAC (VED4105) |
| Frequency Range | 50 Hz / 60 Hz (auto sensing) |
| Max PV Array Open Circuit Voltage | 450 VDC |
| Max PV Input Current | 28 A |
| Max PV Array Power | 6000 W |
| PV Array MPPT Voltage Range | 60–360 VDC |
If you would like to learn more about our Off Grid Solar Battery System, explore its full performance capabilities, or discuss a customized energy storage solution tailored to your project requirements, please feel free to contact our team. We are ready to provide detailed technical support and professional guidance to help you choose the right off-grid solar power solution for your needs.
One of the key advantages of our system is its high-performance lithium battery technology. Compared with traditional lead-acid batteries, LiFePO4 chemistry offers significantly longer cycle life, higher energy efficiency, and improved thermal stability. With more than 6000 charge cycles and up to 90% depth of discharge, our system ensures long-term value and reduced replacement costs, making it a cost-effective investment for solar energy users.
Another reason to choose our system is its powerful inverter and flexible solar compatibility. The integrated pure sine wave inverter delivers stable 230VAC output with high efficiency, ensuring smooth operation of household appliances and sensitive electronics. With strong PV input capability and advanced MPPT technology, the system maximizes solar energy harvesting even under changing weather conditions. This means higher energy utilization and better overall system performance.
Safety and reliability are at the core of our design. The built-in smart Battery Management System (BMS) continuously monitors voltage, current, and temperature to protect against overcharge, over-discharge, short circuits, and overheating. This intelligent protection system ensures safe operation under all conditions while extending battery lifespan. In addition, the system supports real-time monitoring and communication via CAN and RS485, allowing users to easily track performance and manage energy usage.
Our Off Grid Solar Battery System also stands out for its versatile application and smart operation modes. It supports grid-tied, off-grid, and hybrid working modes with automatic switching, ensuring uninterrupted power supply even during grid failures. Whether used in residential homes, remote cabins, small businesses, or backup power systems, it provides consistent and dependable energy support.
The compact and durable structural design further enhances its practicality. With a robust metal enclosure and space-saving configuration, the system is easy to install and suitable for various environments. Its quiet operation and low maintenance requirements make it an ideal solution for modern energy storage needs.
Choosing our Off Grid Solar Battery System means choosing reliability, efficiency, safety, and long-term energy independence. It is not just a battery system—it is a complete energy solution designed to help you reduce electricity costs, increase energy self-sufficiency, and embrace a sustainable future powered by clean solar energy.
This Off Grid Solar Battery System is engineered for residential and small commercial solar applications, enabling efficient storage of daytime solar energy and providing continuous power during nighttime or grid outages. The system incorporates an intelligent Battery Management System (BMS) that ensures real-time monitoring, optimized energy performance, and multi-layer safety protection. It is compatible with most 48V hybrid inverters, supporting off-grid, grid-tied backup, and hybrid operation modes.
The system is built using high-quality LiFePO4 prismatic cells with excellent thermal stability, safety, and long service life. The outer enclosure is constructed from reinforced metal housing combined with flame-retardant materials for enhanced durability. High-conductivity copper busbars ensure efficient current transfer and reduced energy loss during charge and discharge cycles, improving overall system efficiency.
Each Off Grid Solar Battery System is manufactured under strict quality control and automated assembly processes. Battery cells are carefully matched for consistency before integration. The built-in smart BMS continuously monitors voltage, current, and temperature to protect against overcharge, over-discharge, short circuits, and overheating. Every unit undergoes capacity testing, aging validation, and safety inspections to ensure long-term reliability and stable performance.

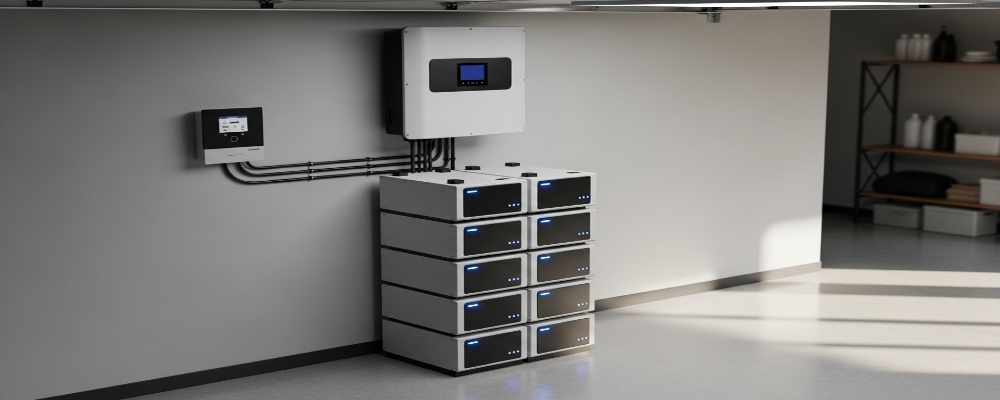

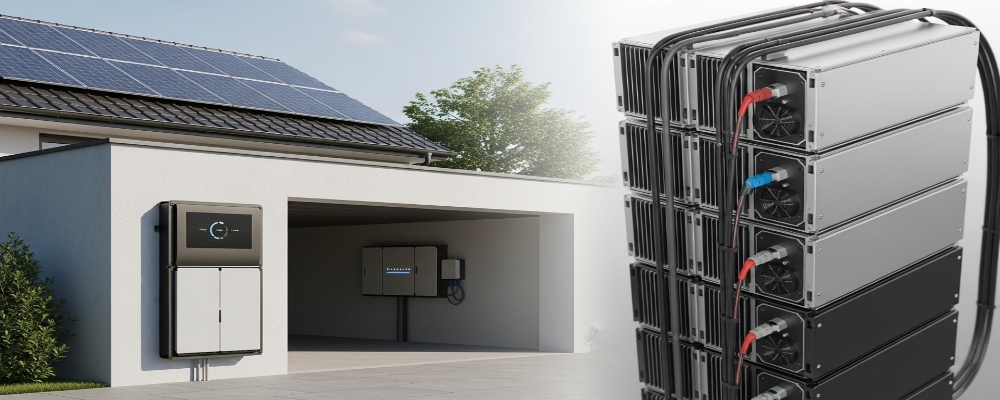

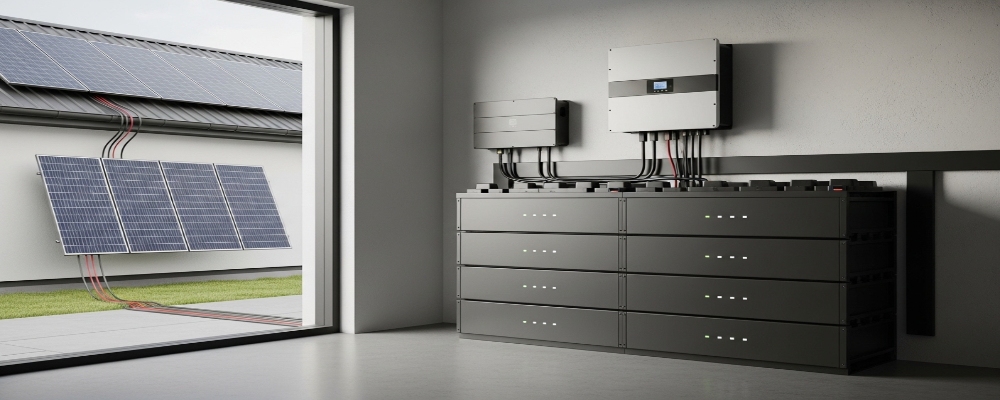

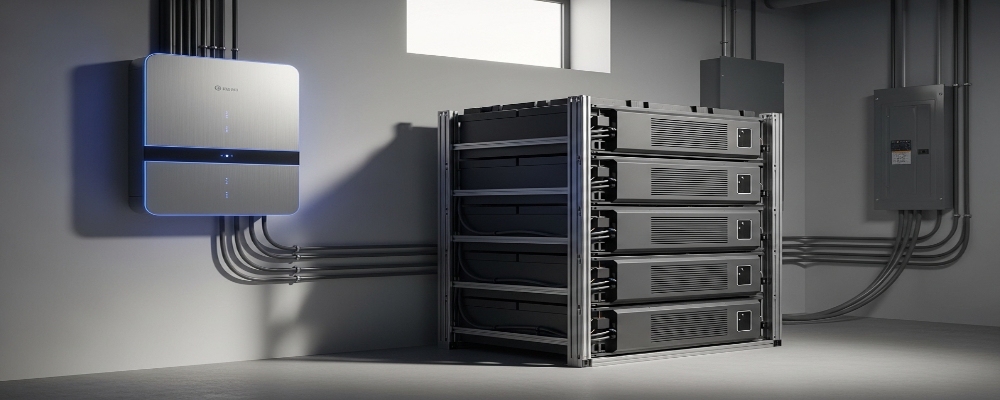

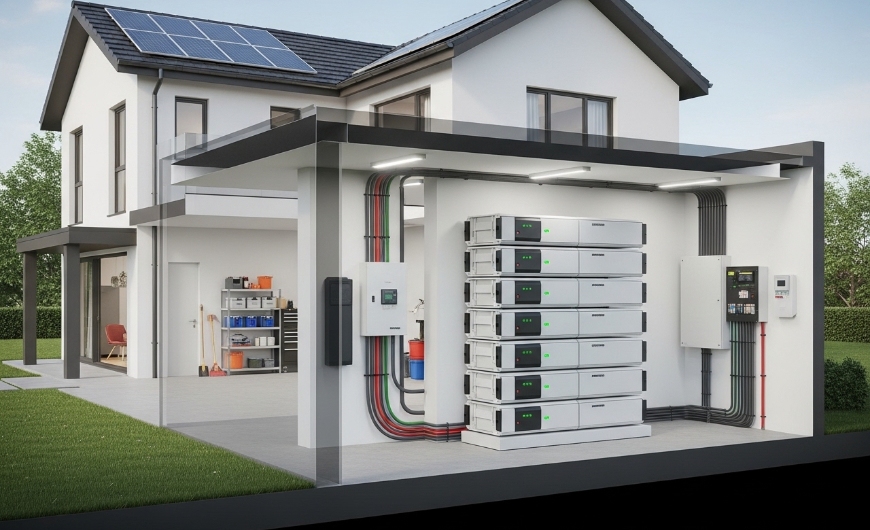

The Off Grid Solar Battery System is widely used in residential solar energy storage, home backup power systems, and off-grid installations. It provides reliable electricity during power outages, stores excess solar energy for nighttime use, and improves overall energy independence. It is ideal for homes, villas, apartments, and small commercial buildings seeking compact and efficient energy storage solutions.
The system is designed in accordance with international safety and quality standards, including CE, UL, and RoHS compliance. It meets requirements for electrical safety, thermal stability, and mechanical durability in residential energy storage applications, ensuring safe and stable operation under various environmental conditions.
Q1: Is this system suitable for off-grid use?
A: Yes, it is specifically designed for off-grid and hybrid solar energy systems.
Q2: Can it work with solar panels and inverters?
A: Yes, it is fully compatible with solar PV systems and 48V hybrid inverters.
Q3: Can multiple units be expanded together?
A: Yes, multiple systems can be connected in parallel to increase total capacity.
Q4: What is the expected lifespan?
A: The system supports over 6000 charge cycles depending on operating conditions.
Q5: Does it support smart monitoring?
A: Yes, it supports CAN/RS485 communication and optional smart monitoring features.
The system automatically adjusts power flow based on load demand and available solar input, improving overall energy balance and efficiency.
All core components are structured in a unified layout, reducing installation space and simplifying system setup for different environments.
Engineered for long-term continuous operation, the system maintains consistent performance even under frequent charge and discharge cycles.
It can coordinate with various energy inputs, including solar arrays and backup grid supply, ensuring flexible energy utilization.
Built-in control logic manages charging and discharging behavior to optimize system response without requiring manual intervention.
Designed to function reliably across different temperature and working conditions, making it suitable for diverse installation sites.
The Off Grid Solar Battery System can be applied in remote power environments, mobile or temporary energy setups, emergency electricity support scenarios, and locations with unstable grid infrastructure. It is also suitable for small independent power networks, outdoor installations, and areas requiring autonomous energy management where continuous and reliable electricity supply is essential.

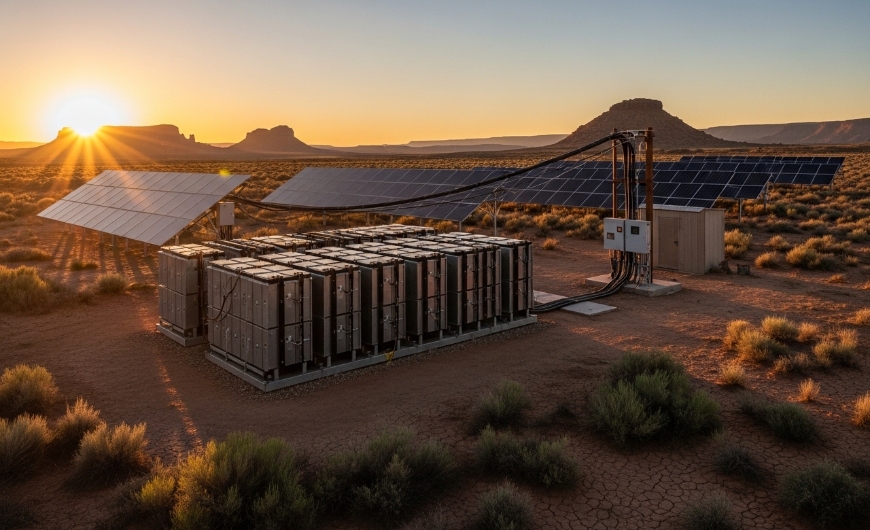

Used in isolated locations where access to public electricity is limited or unavailable, providing a steady local power source.

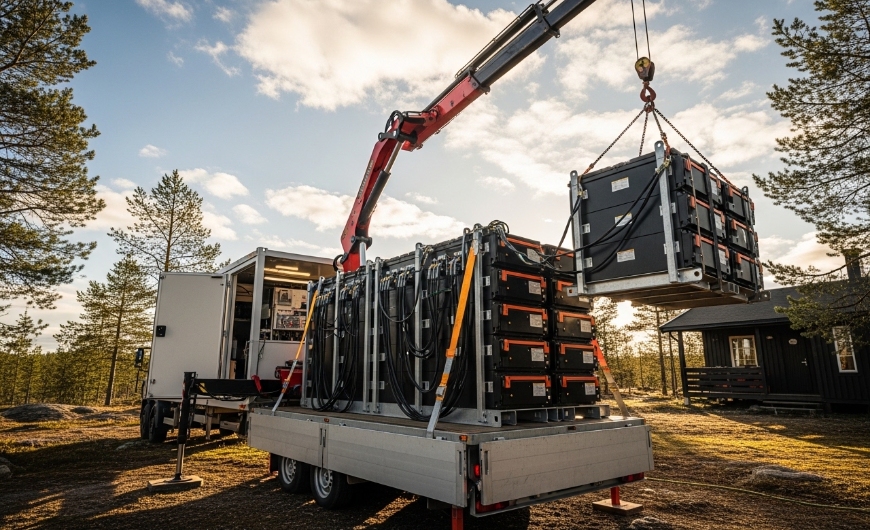

Suitable for short-term installations such as field projects, exhibitions, or construction sites requiring independent electricity.
Acts as a standby energy source during unexpected power interruptions to maintain basic equipment operation.
Supports small self-sufficient setups that operate separately from the main utility grid.
Applied in outdoor environments where portable and reliable electricity is needed for tools, lighting, or devices.
